WE-103 LED

WE-103 LED

Occasion: Food/Bakery/Medicine Industry
Coverage: 200m²

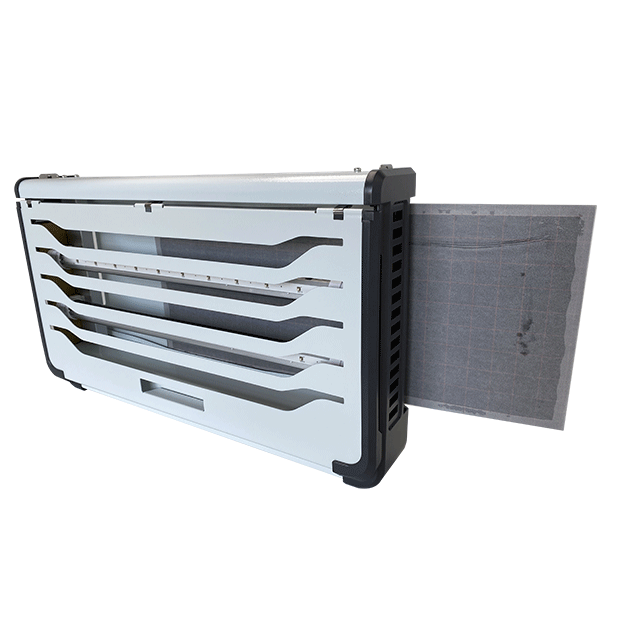

WE-103LED _1_.png
/

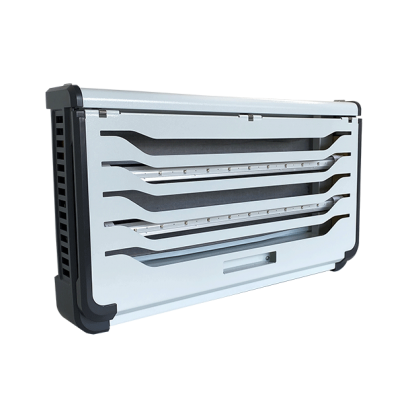

WE-103LED _2_.png
/

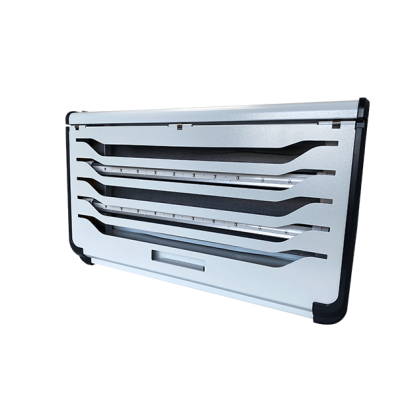

WE-103LED _3_.png
/

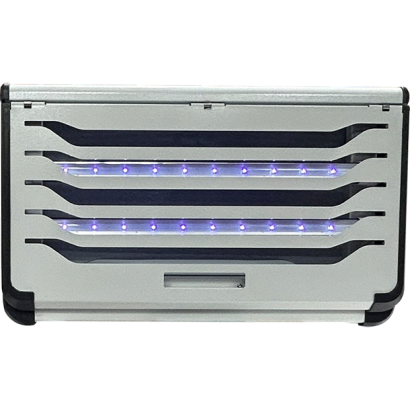

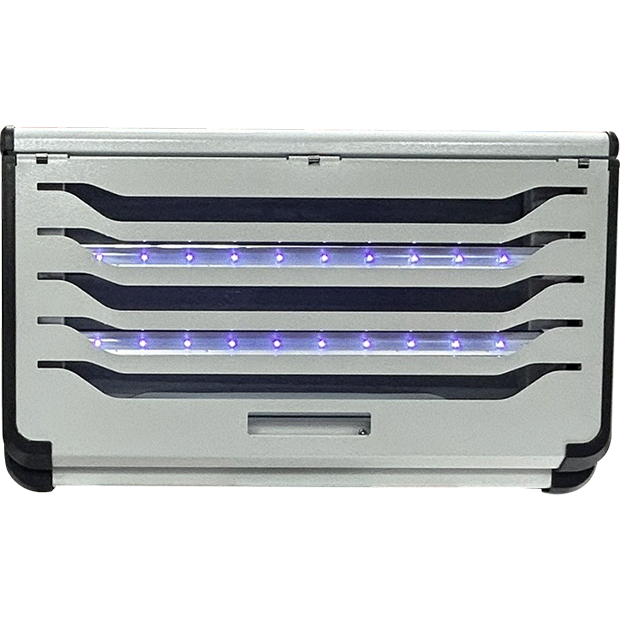

WE-103LED _4_.png
/

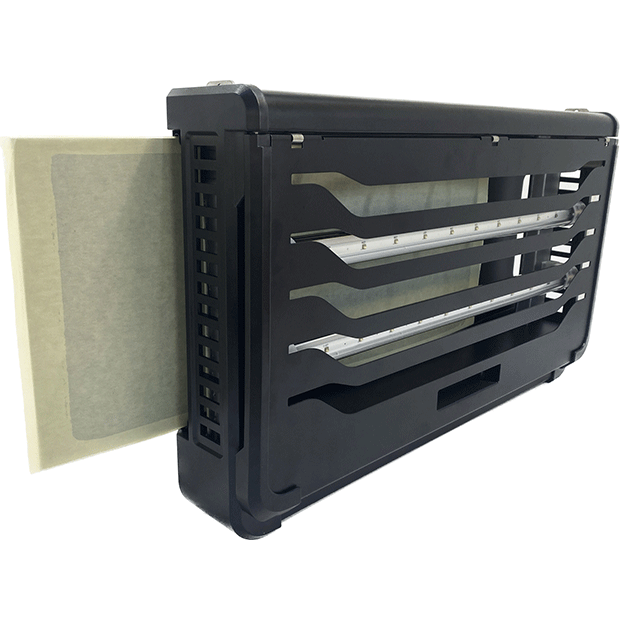

WE-103LED _5_.png
/

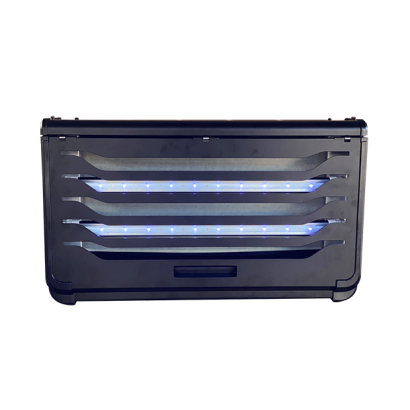

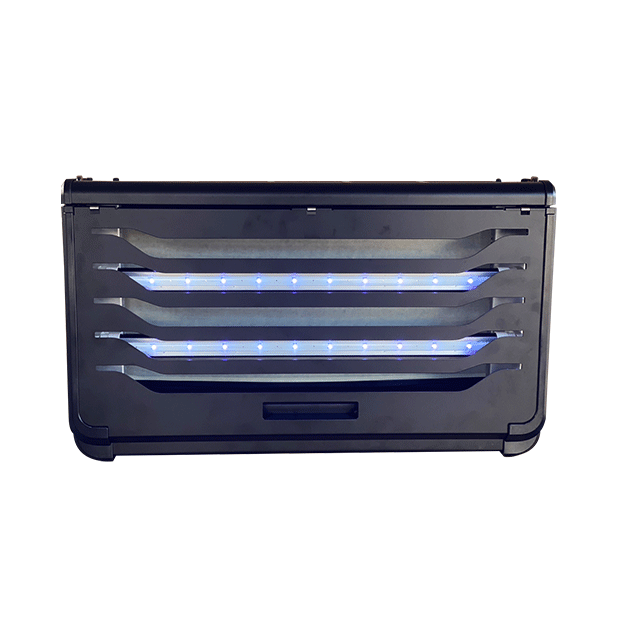

WE-103LED _6_.png
/
  • WE-103LED _1_.png
  • WE-103LED _2_.png
  • WE-103LED _3_.png
  • WE-103LED _4_.png
  • WE-103LED _5_.png
  • WE-103LED _6_.png
DETAIL

  • LED chips integrated into tube form, emitting effective insect-attracting UV wavelength 365–400 nm.

  • Lead-free LED tubes compliant with RoHS standards; long lifespan, energy-saving, and eco-friendly.

  • Versatile structural design: can be wall-mounted or placed on a flat surface with fold-out stand.

  • Side-loading glue board design—easily replace boards without opening the front cover.

  • Conventional UV tubes require replacement every 3–6 months; by contrast, LED tubes have a lifespan of approx. 25,000 hours (24/7 operation), reducing energy consumption, maintenance workload, and replacement risk.

  • Unique front cover design with inward-extended openings ensures unobstructed light emission, combining insect-trapping efficiency with aesthetic appeal.

  • Features European-imported glue boards with long-lasting adhesion unaffected by lamp heat.

  • Stylish exterior design, suitable for restaurants, cafés, and hotels where ambience is emphasized.

  • Coverage area: approx. 200 m².


    Product Name WE-SB-103 LED
    Material Steel
    Tube Watts 21W
    Tube Type T8-UV LED Lamp 11W *2pcs
    Wavelength UVA 350~400nm
    Power Consumption 21W
    Glue Board Size 46.8 x 19.8 cm * 1pcs
    Certification TUV
    Input Voltage/Frequency Full Range
    Coverage Wall-Mounted: 200m²
    Dimension L 49.8 x W 29.8 x H 9.2 cm
    Weight 3.3 Kg
