For Ozone Generator

  1. High Voltage Transformer
  2. For Ozone Generator
86 Series High Voltage Trasformer

86 Series High Voltage Trasformer

Versatile designs (horizontal, side-mounted, and vertical) to accommodate your equipment space requirements, with stable support brackets.
Exclusive heat dissipation mechanism for superior performance.
Customizable input and output voltages available.
/

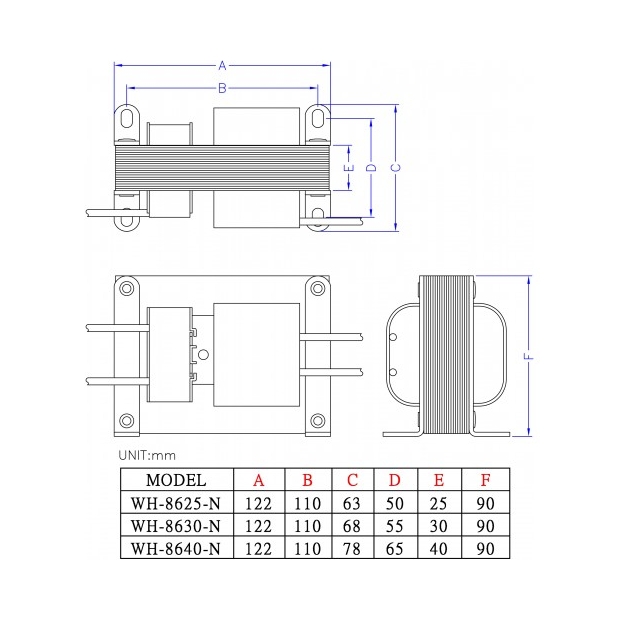

8625 spec.jpg
/

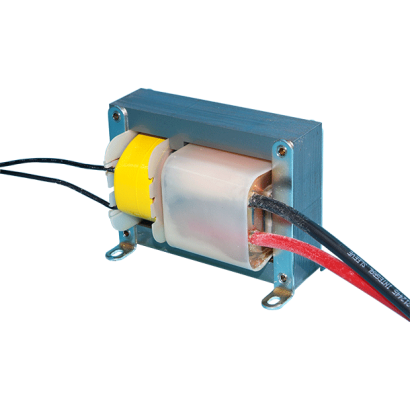

  • 8625.png
  • 8625 spec.jpg
DETAIL
Product Name WH-8625、WH-8630、WH-8640
Sitting Type Vertical/Horizontal/Side Mounting
Input AC 100~240V
Output 3,000 VAC / 5,000 VAC / 4,000 VAC / 6,500 VAC / 4,000 VAC / 7,500 VAC
Current 40 mA / 20 mA / 35 mA / 20 mA / 50 mA / 30 mA
